Analog vs. Digital Stage Boxes: A Comparison for Live Sound Engineers

What is a Stage Box?

A stage box is a device used to gather and route audio signals, typically from the stage to the mixing console. Instead of running individual XLR cables for each microphone or instrument, stage boxes allow you to bundle multiple signals into one box, keeping the setup tidy and more manageable.

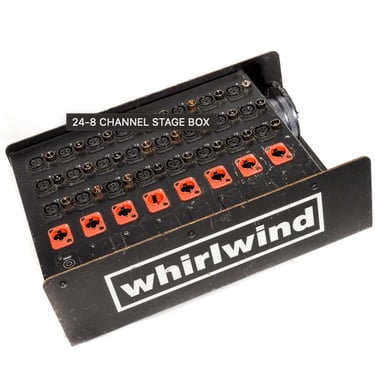

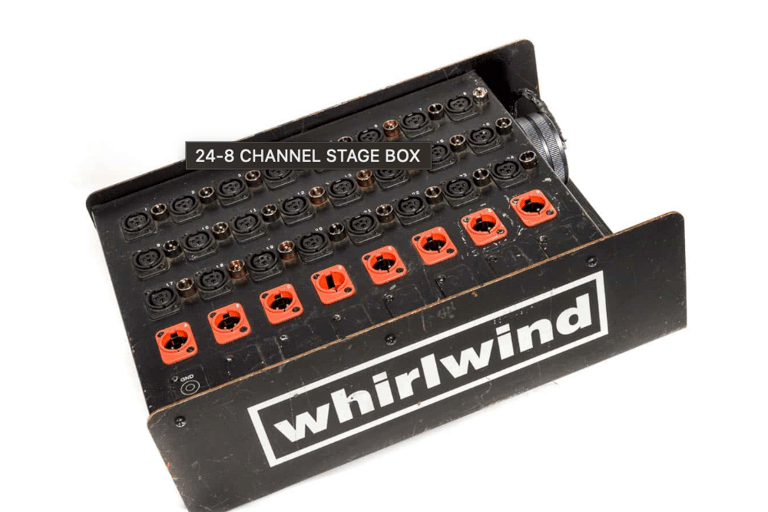

Analog Stage Boxes

Analog stage boxes are relatively straightforward. They have multiple XLR inputs and outputs and function by physically routing signals via XLR cables. Here’s how they work:

• XLR Inputs/Outputs: Analog stage boxes are typically equipped with a range of XLR inputs, which can be numbered. For example, if you plug a microphone into input 8 on stage, it will come out of output 8 on the mixer’s end.

• Simple Signal Transfer: There’s nothing complex happening within an analog stage box; it's essentially a bunch of cables bundled into a larger multi-channel cable. This type of box works without any digital processing.

Analog stage boxes are reliable and easy to use, making them a great choice for simple setups. However, they require long, heavy multi-channel cables that can become unwieldy, especially in larger venues.

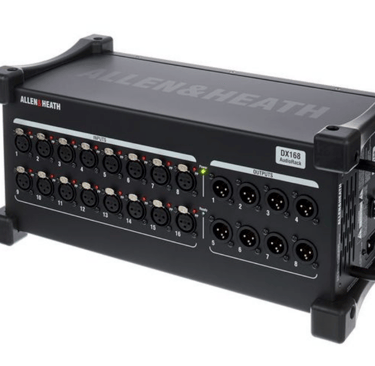

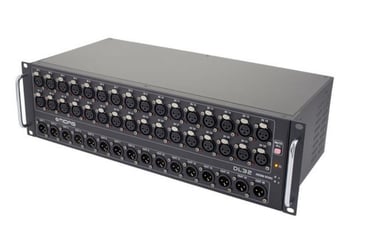

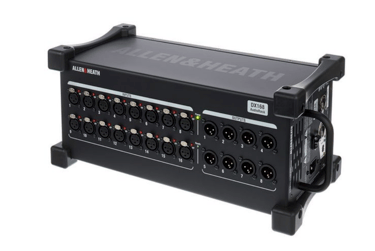

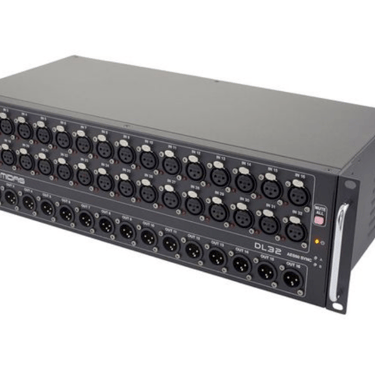

Digital Stage Boxes

In contrast, digital stage boxes are more advanced and capable of sending multiple channels of audio digitally over a single network cable, such as CAT5 or CAT6. They often feature additional functionality and are a common choice in modern live sound setups.

• XLR Inputs/Outputs with Digital Processing: While digital stage boxes also have XLR inputs and outputs like their analog counterparts, the key difference lies in the digital signal processing happening behind the scenes. Inside the stage box, preamps boost the microphone signal to line level before converting it into a digital format for transmission.

• Network Cable Transmission: Instead of using thick multi-core XLR cables, digital stage boxes send audio signals over network cables like RJ45 (similar to Ethernet cables). This significantly reduces the amount of cabling needed and allows for easier, longer-distance runs without signal degradation.

• Power Requirement: Unlike analog stage boxes, digital ones require power to operate. Without power, no signal can be transmitted. Always ensure the box is powered up and connected properly before troubleshooting signal issues.

• Multi-Channel Audio Protocols: Digital stage boxes communicate with mixers using various digital protocols. For example, AES50 is a popular protocol used to send multiple channels of audio between the stage and the mixer. Other protocols like Dante, MADI, or AVB might also be used depending on the system.

Key Differences: Analog vs. Digital

1. Signal Transmission:

   • Analog: Purely physical cables with no digital processing.

   • Digital: Converts analog signals into digital data for transmission over network cables.

2. Cable Management:

   • Analog: Uses heavy multi-core XLR cables.

   • Digital: Utilizes lightweight network cables (RJ45), which can handle long runs without signal loss.

3. Power Requirements:

   • Analog: No power required, purely passive.

   • Digital: Requires external power to function, as it houses preamps and digital converters.

4. Flexibility:

   • Analog: Limited to physical XLR inputs and outputs.

   • Digital: More versatile with the ability to handle routing and multiple audio channels with ease.

Using Both Analog and Digital Stage Boxes Together

In many setups, you might use both analog and digital stage boxes together. For instance, you could use a digital stage box to send audio from the stage to the mixer, while using an analog stage box to manage a specific zone on stage, such as a drum kit. This can help reduce the number of long cable runs while keeping everything flexible and manageable.

Conclusion

Both analog and digital stage boxes serve the same basic function of moving audio signals, but they do so in very different ways. Analog boxes are simple and reliable, but digital stage boxes offer more flexibility, easier cable management, and the ability to handle complex, multi-channel audio setups.

Whether you’re working with analog or digital, understanding how stage boxes work will allow you to set up your system more effectively and troubleshoot issues more efficiently.
